Electrical Specifications |
|
Model No. |
G13213C |
Frequency Range |
1710-2170MHz |
Gain |
12Dbi |
VSWR |
≤1.5 |
Input Impedance |
50Ω |
Polarization |
Vertical &Horizontal |
Front to Back Ratio |
≥15dB |
Horizontal Half Power Angle |
50° |
Vertical Half Power Angle |
45° |
Max Input Power |
100W |
Lightning Protection |
DC Ground |
Mechanical Specifications |
|

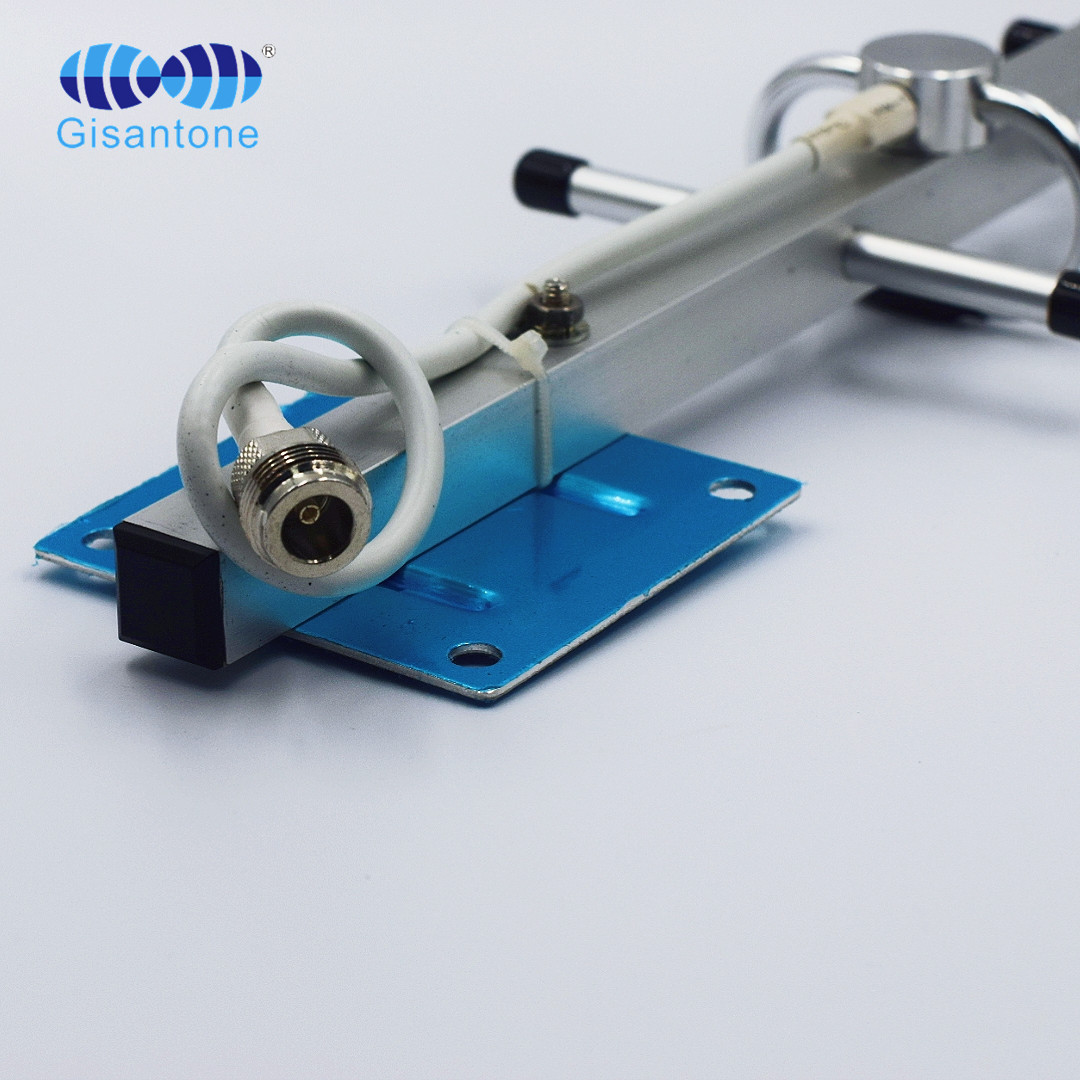

Connector Type |
N-female |
Cable Type |
RG58/U |
Cable Length |
30CM |
Working Temperature |
-40℃~﹢65℃ |
Antenna Weight |
350g |
Pole Diameter |
Φ35~φ55mm |
Size |
410*102*45mm |
Rated Wind Velocity |
210km/h |
Radiating Element |
9 |
